and robust construction with internal cable routing.
Rider Reviews
All Control on Screen
Explore our smart operating system, redefine your interactive experience
Smart Technology
Millimeter Wave Radar
Easy Navigation
Anti-theft
OTA Upgrade

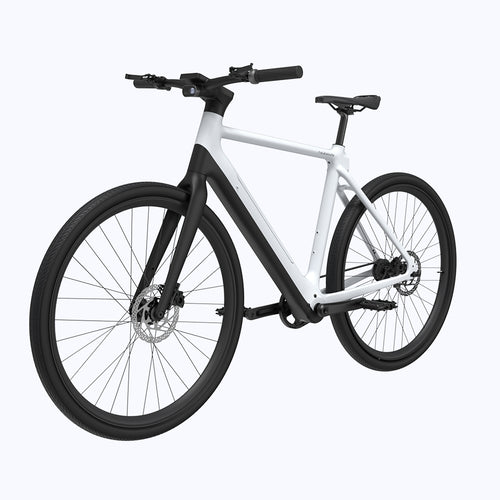

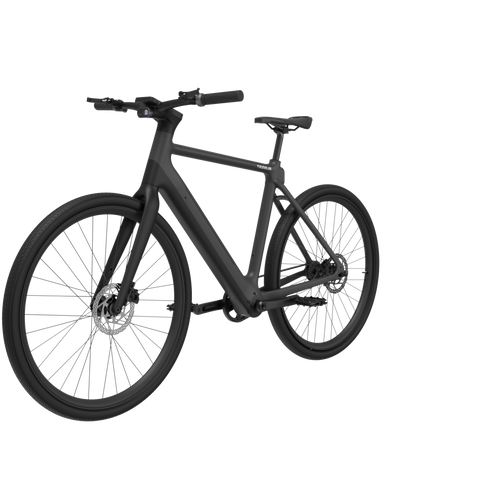

Lightweight Carbon Frame
Lightweight, strong, and durable for a smooth, reliable ride.
Tezeus Mid-Drive Motor
Tezeus designed and engineered
Rated Motor Power: 250W
Peak Torque: 60Nm
Effortless Climbing with Boost
Provides smart, intuitive assistance that makes climbing hills effortless and enhances your overall ride.
Real-Time Range Prediction
Smart algorithm predicts remaining mileage by analyzing terrain, riding mode, and power use.

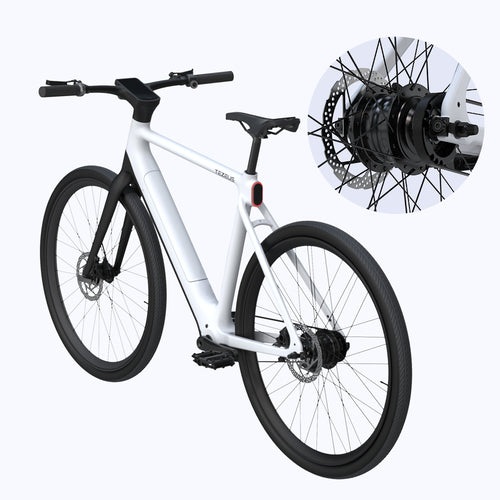

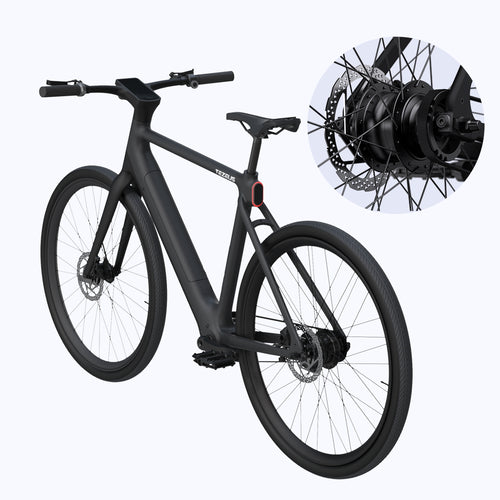

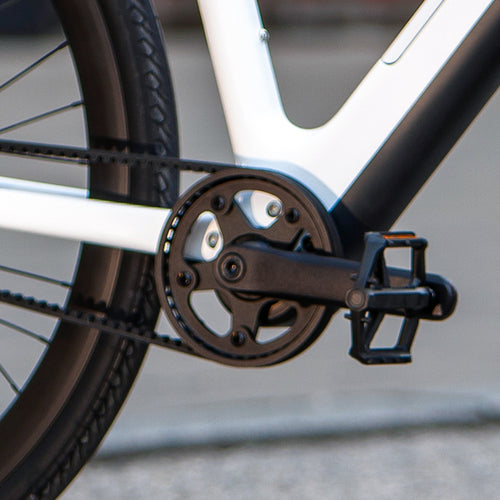

Chain-Free, Care-Free
Durable belt drive ensures smooth, quiet, and low-maintenance rides.
Intelligent AI Charging
It learns your daily routine and recommends charging during off-peak hours and protects battery health.
Enhance Your Ride
Unlock the full potential of your cycling adventure with our enhancements. Empower your journey with technology and innovation.
Smart eBike with Smart App
Dashboard & Remote Control
Track Your Bike
Share Your Journey
Customizable Motor Settings
Component
Bike Type
City E-Bike
Color
Black / White
Frame Material
Carbon fiber
Front Fork Material
Carbon fiber
Seatpost Material
Aluminum alloy
Wheel Material
Aluminum alloy
Drivetrain
Belt drive
Brakes
Hydraulic disc
Tires
700*35C
Weight
15kg (33lbs) - single speed
16.5kg (36lbs) - with internal gear hub
*The data may have a +/- 3%-5% tolerance.The weight marked here includes the battery and kickstand,
but does not involve other accessories.
Size
ITEM | SIZE (MM) | |
---|---|---|
Tire Size | 700*35C | |
A | Standover height | 800 |
B | Handlebar grips height | 992.53 |
C | Wheelbase | 1085.65 |
D | Overall length | 1785 |
E | Seat tube length | 530.78 |
F | Chain stay length (rear-center) | 450 |
G | Top tube length (effective) | 536.34 |
H | Overall length | 700 |
Electronics
Motor
Mid-drive motor
Weight: 2.6KG
Maximum torque: 60Nm
Rated power: 250W
Noise: less than 50dB
Sensor
Speed sensor
Torque sensor
Gyroscope sensor
Millimeter wave radar

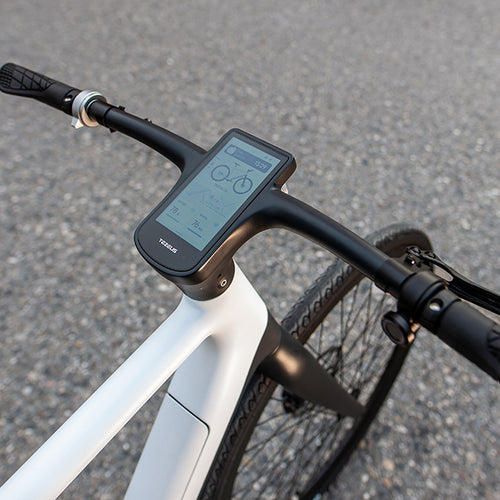

Display
5.0 inch, 1080P IPS, IP65 waterproof
Battery
Samsung 360Wh Integrated lithium battery
GaN fast charging - 2.5 hrs
Performance
Top Speed
EU version 25km/h (15mph)
US version 32km/h (20mph)
*The motor assistance will cease once the specified maximum speed is reached.
You can break the speed limit by increasing your pedaling frequency. This is allowed by regulations.
Range
Up to 100 km (62 miles)
*The data will vary depending on temperature, road conditions, rider's weight, etc.
Charging Time
2.5 hours
*Using the Tezeus GaN charger.
Power Mode
Level 0~3, walking mode & boost mode
*In "Power 0" mode, the motor does not provide any power. You can ride the C8 like a regular bicycle.
Total Weight Limit
110kg (242.5lbs)
