Bright Front Lighting
Efficient Motor & Pedal Assist
Sleek Internal Cable Routing Design
Integrated Design
Seat tube-integrated
Shimano 7-Speed Gear System
Reliable gear shifting for smooth control across any terrain.
Seat-Tube Battery Lock
Rear Suspension
Smooths out bumps for
a more comfortable ride.
Durable Chain Drive
123LINK chain for long-lasting performance.
Color Display
Provides real-time riding information at a glance.
Steady Tires
Kenda 20×1.95 tires for stable rides on any surface.
Shimano Hydraulic Disc Brakes
Smooth, responsive braking for reliable control and safety.

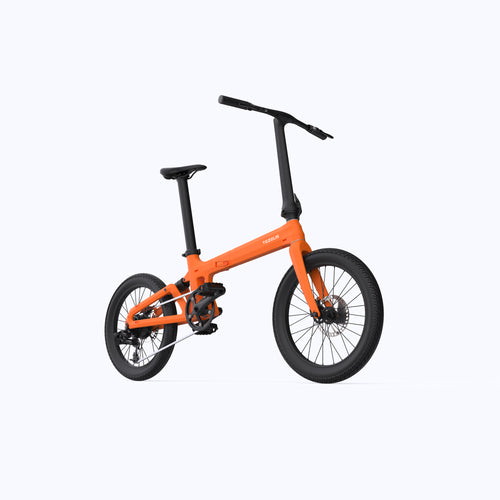

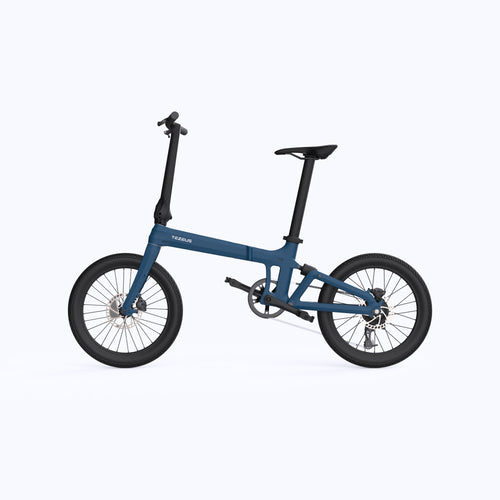

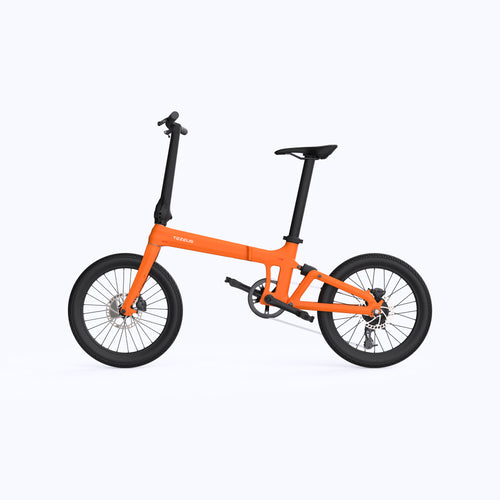

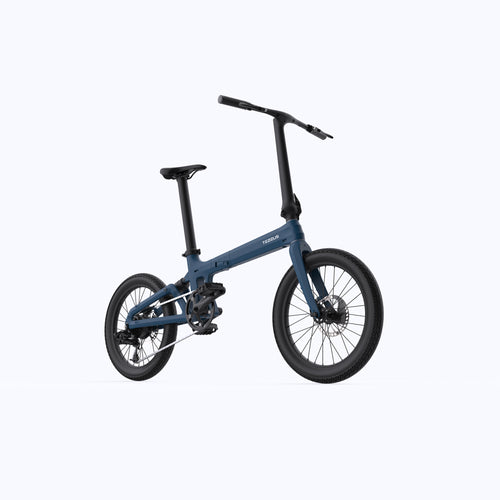

Foldable Design with Carbon Frame
Lightweight Durability
Crafted from premium carbon fiber, Tezeus Swift combines incredible strength and lightness, ensuring a durable yet effortless ride.
Fold in Seconds, Go Anywhere
With a quick-fold mechanism, it packs down in moments—perfect for commuters and travelers on the move.
Component
Bike Type
Folding E-Bike

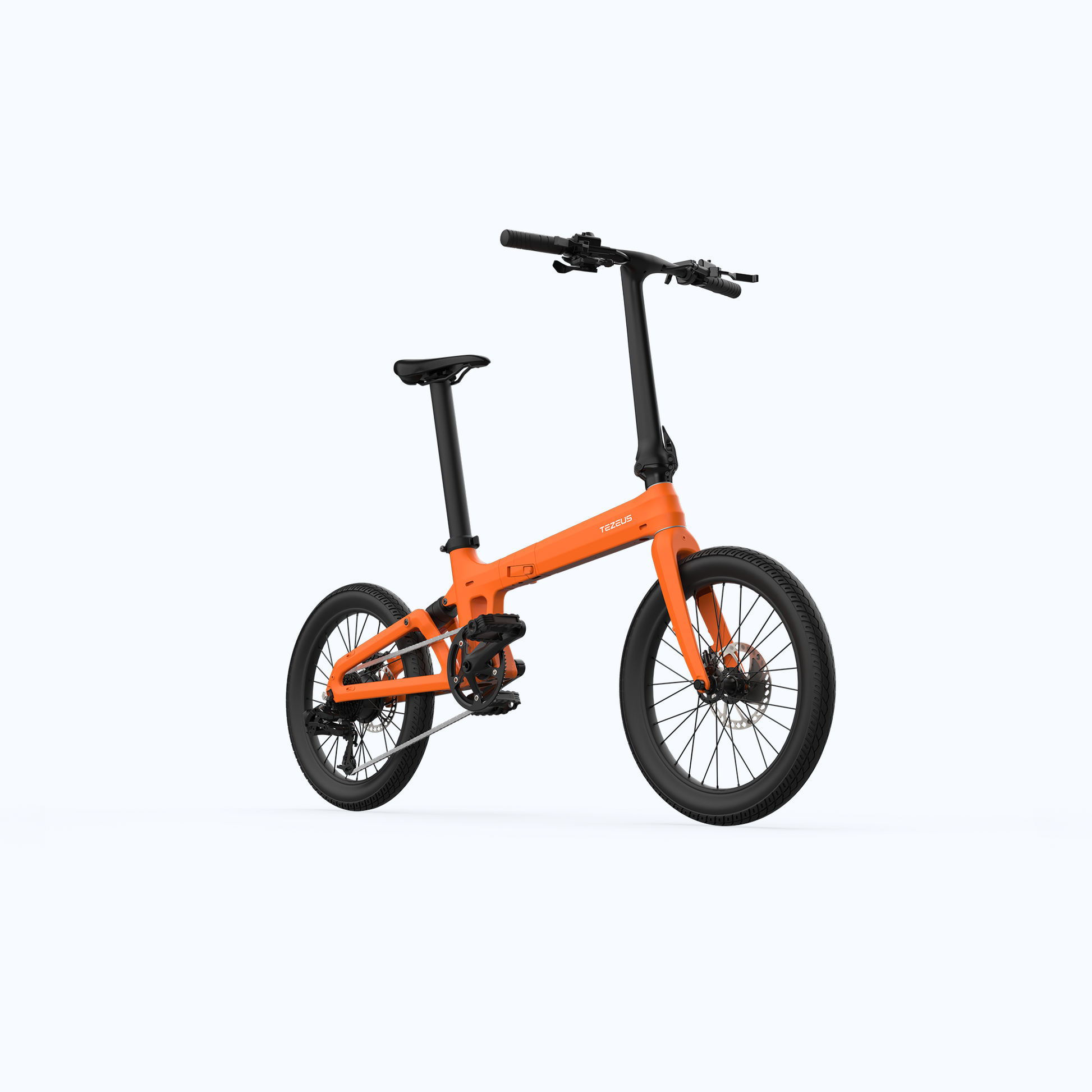

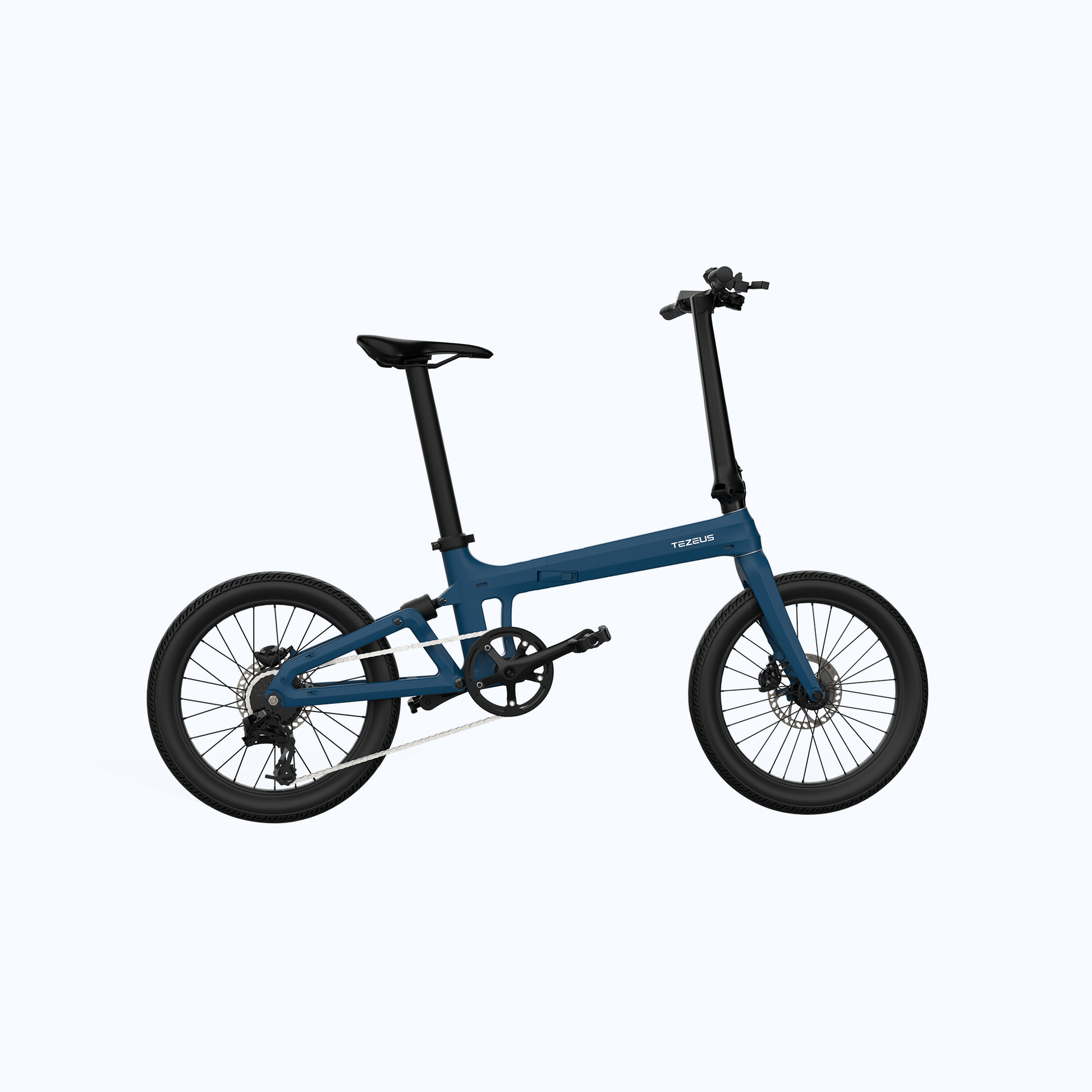

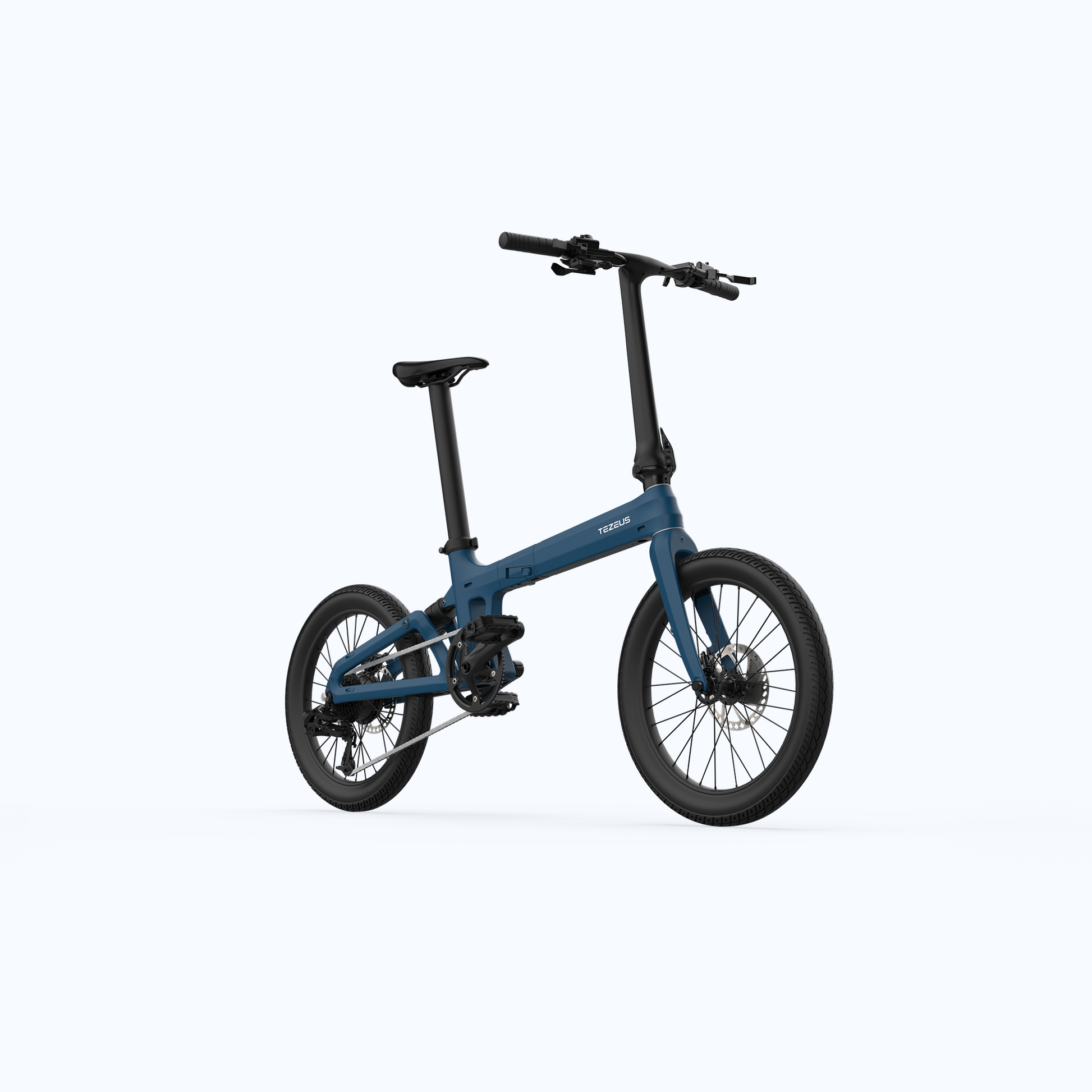

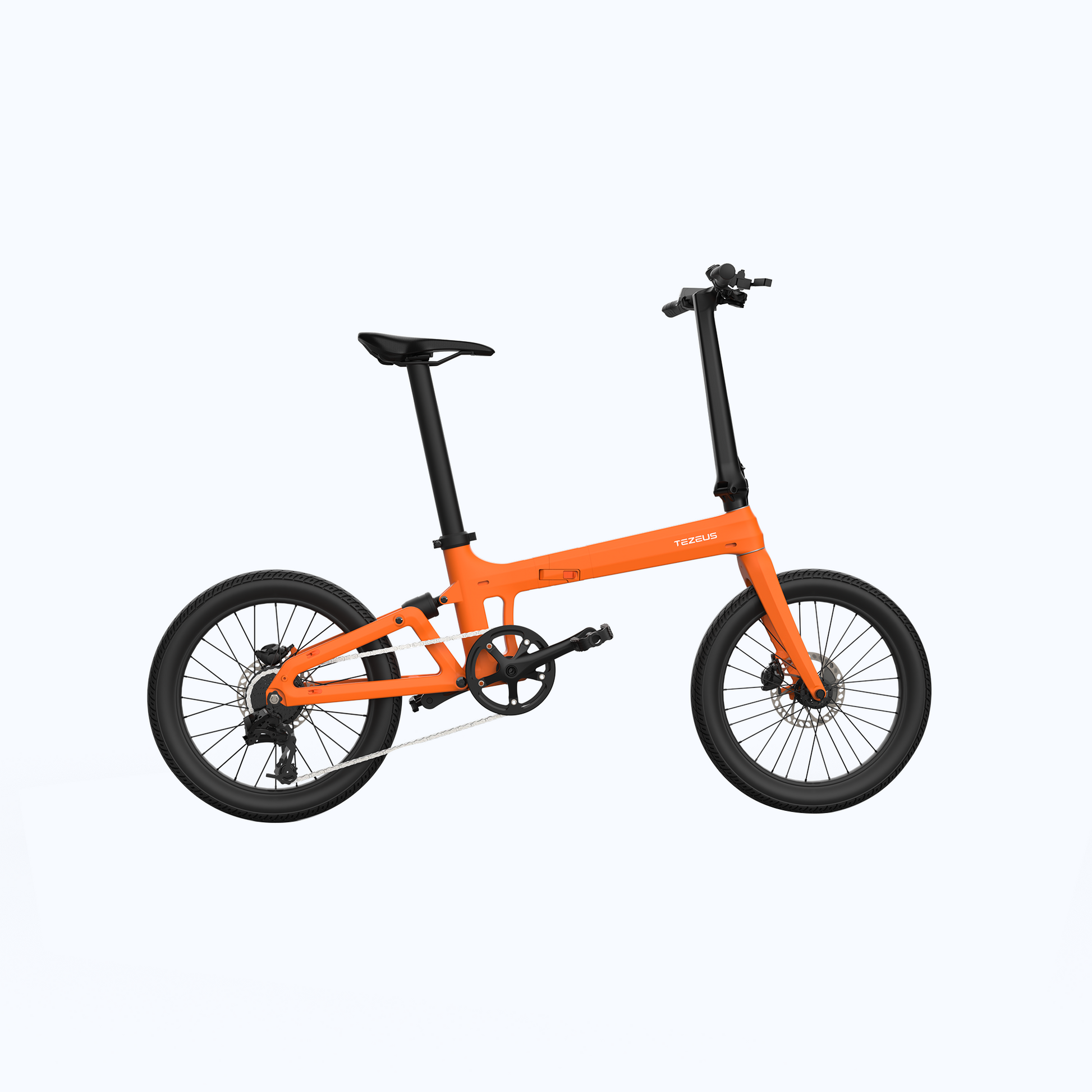

Color
Orange / Blue
Frame Material
Carbon fiber
Front Fork Material
Carbon fiber
Seatpost Material
Aluminum alloy
Wheel Material
Aluminum alloy
Controls
Thumb throttle
Drivetrain
Shimano 7-speed rear derailleur
Brakes
Shimano hydraulic disc brakes
Tires
20*1.95
Weight
16.4kg (36lbs)
*The data may have a +/- 3%-5% tolerance.The weight marked here includes the battery, but does not involve other accessories.Size
| ITEM | SIZE (MM) | |
|---|---|---|
| Tire Size | 20*1.95 | |
| A | Standover height | 520 |
| B | Handlebar grips height | 1000 |
| C | Wheelbase | 1100 |
| D | Overall length | 1600 |
| E | Seat height | 840-1040 |
| F | Handlebar width | 640 |
| G | Handlebar reach | 600 |
| H | Head tube length | 400 |
| I | Chain stay length (rear-center) | 470 |
| J | Height after folding | 730 |
| K | Overall length after folding | 900 |
Electronics
Motor
Hub motor
Rated torque: 30Nm
Rated power: 250W
Sensor
Torque sensor
Cadence Sensor
Display
Color display
Battery
LG 36V 7Ah（252 Wh）seat post battery
Performance
Top Speed
EU version 25km/h (15mph)
US version 32km/h (20mph)
*The motor assistance will cease once the specified maximum speed is reached.
You can break the speed limit by increasing your pedaling frequency. This is allowed by regulations.
Range
Up to 60 km (37 miles)
*The data will vary depending on temperature, road conditions, rider's weight, etc.
Total Weight Limit
120kg
Frequently Asked Questions
Is the folding process complicated?
- Grab the seatpost and loosen the clamp.
- Slowly push the seatpost down to the ground, then tighten the clamp.
- Loosen the handlebar clamp.
- Rotate the handlebars to a vertical position.
- Release the locking clamp and fold the head tube.
- Fold the pedal by pressing it flat.
- Secure the magnetic connection between the two wheels.
Notice: Avoid friction between the handlebar and the frame — use protective pads if needed.
What are the folded dimensions?
It’s 90*58*73cm.
What is the weight capacity?
The maximum weight capacity is 100 kg.
Does the Tezeus Swift have a throttle?
The US version comes with a thumb throttle, while the EU version does not include a throttle.
What is the recommended rider height for this bike?
The recommended rider height is 150 cm to 195 cm.
